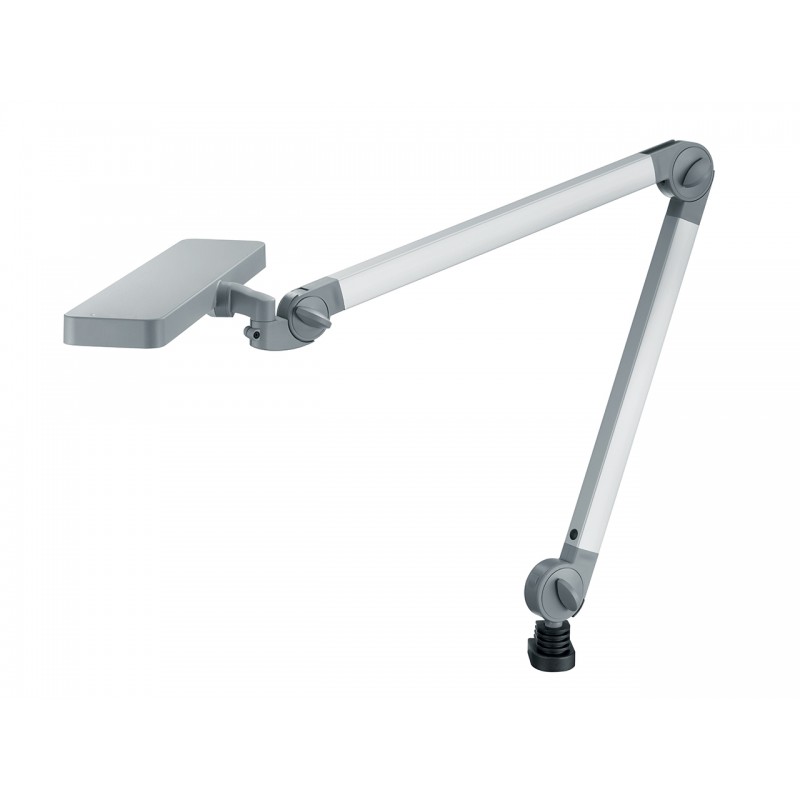

WALDMANN® STE 111 Lamp

WALDMANN® STE 111 Lamp

Invented purpose: Workplace light are intented ti illuminate a single workplace and are used in addition to a general lighting equipment.

Place of use: Exclusively for dry rooms not subject to explosion hazards

Operating mode: The light is designed for continuous operation

Putting into operation: before putting the light into operation, the user has to check whether the mains voltage is identical with the rated voltage specified on the rating plate.

Adjusting the articulation joints: The joints are adjustable by means of an adjusting screw. Each point must be ajusted such that the light is on the one hand, easily movable and on the other hand remains in the position desired by the user. If desired, the joint on the light head can be adjusted using the two screws.

Technical data:

Classification: protection class I, International protection IP20, not suitable for rooms subject to explosion hazards, continuous operation.

Dimensions:

Light body 326x116x50mm

Column: 74+400+350mm

Electrical values: nominal voltage: 230V AC, frequency range: 50Hz

Equipped with 1 fluorescent lamp TC-SEL 11W

Electronic ballast unit

Product sold by unit
