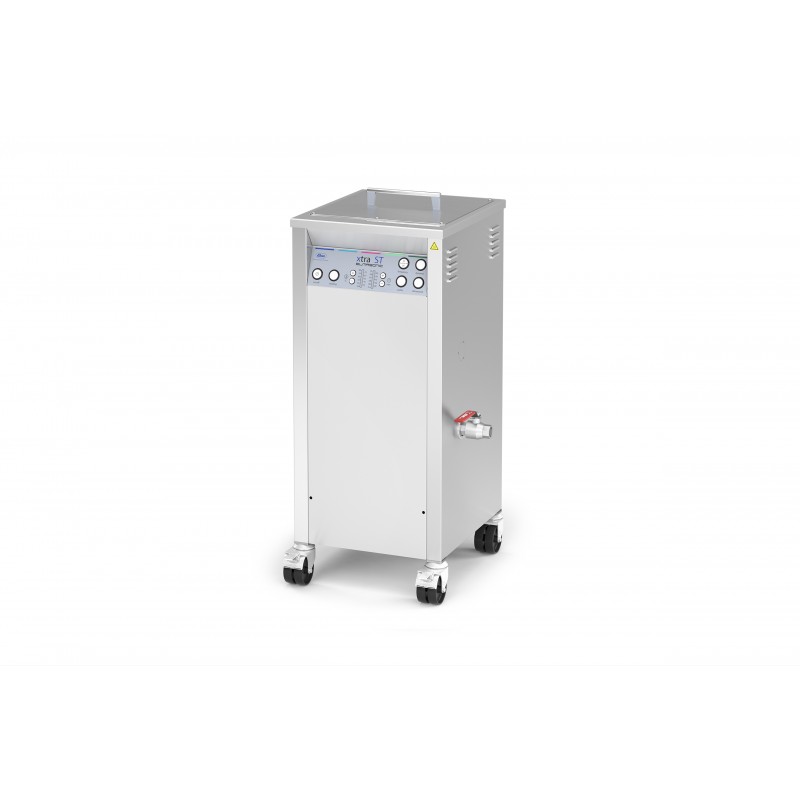

Elmasonic xtra ST 500 H

Robust and strong single tank devices with multi-frequency technology

Functions of Elmasonic xtra ST ultrasonic devices:

Multi-frequency at 25/45 kHz: Individually settable frequencies depending on the cleaning job.

25 kHz for rough part cleaning and removing stubborn contaminants like lapping and polishing paste, for example.

45 kHz for cleaning sensitive parts and surfaces from contaminants like oils, drilling emulsions and greases. Also ideal for hard metal and glass surfaces in industrial and artisan environments as well as jewellery manufactures.

Sweep-function for optimum sound field distribution and cleaning performance in the entire ultrasonic bath.

Pulse-function increases the peak ultrasonic performance output. This uprating makes it possible to remove even the most stubborn contaminants.

The Sweep- and Pulse-functions run alternately on an automatic basis. The ultrasonic performance is temporarily increased by up to 20%. At the same time, the even ultrasonic sound field distribution in the ultrasonic bath enhances

the cleaning effect.

Short heating times due to the high heating capacity with temperature regulation (30 - 80°C)

High user safety with automatic safety shutdown

Easy to service due to quick changing of the generator and operator control unit. This means that the devices are ready for use again very quickly and are highly available for use
